In situ microscopic observation system

Product introduction

In situ microscopic observation pool

The reaction pool can be used to comprehensively observe the dendrite growth/dissolution process of metal negative electrodes during the charging and discharging process, meeting the observation needs of different metal negative electrodes (lithium, sodium, zinc, etc.), with simple design, good sealing, convenient operation, and repeatability.


Online Inquiry

Product parameter

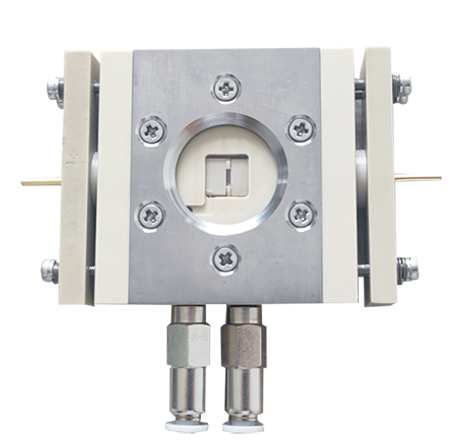

材質: peek
配置可更換且穩定性強的玻碳電極或金屬電極
窗口村質:石英
具有推氣功能，在線加液
裝置密封性好
光窗直徑24mm
最小工作距離為1mm
樣品空間尺寸為10X10mm矩形，厚度適用范圍0.6-2mm
適用各類二次電池

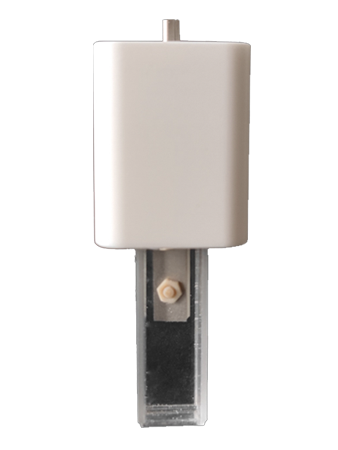

材質:石英
容積: 5ml 左右
電極材質:純鈦
電極間距: 3mm
外殼:四氟，使用密封圈密封
適用對稱鋅電池

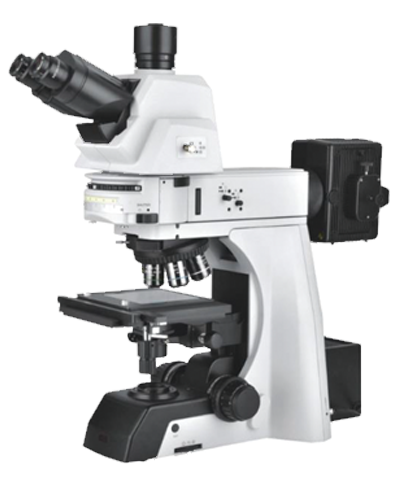

枝晶觀測顯微鏡
光學系統枝晶觀測光學系統
觀察鏡筒鉸鏈?zhǔn)饺坑^察鏡筒，可接駁成像系統，30°傾斜，瞳距45-79mm，眼點可調
目鏡超大視野目鏡WF10X(視場數φ25mm)，高眼點，屈光度可調
物鏡枝晶觀測專用物鏡5X
枝晶觀測專用物鏡 10X
枝晶觀測專用物鏡20X
枝晶觀測專用物鏡50X
枝晶觀測專用物鏡 100X
物鏡轉換器內向式六孔物鏡轉換器
照明系統科勒照明系統，12V/100W 鹵素?zé)?，含起偏器、檢偏器，顏色校正濾片
調焦系統粗微調同軸，粗調帶鎖緊裝置 (防止撞鏡頭)可設置松緊，微調格值1um
載物臺枝晶觀測專用載物臺，尺寸210*140mm，行程76*51mm，含電池專用夾具
成像接口C型接口1X
成像系統U806,SONY COMS,45fps (3072*2048)
U820,SONY COMS，15fps (5472*3648)
軟件Yuescope 2.1


論文信息:

DOI:10.1002/adfm.202109749

DOI: 10.1021/acs.nanolett.1c04975

DOI: 10.1007/s12274-022-4688-5? ?

DOI: 10.1039/dlee03624f
